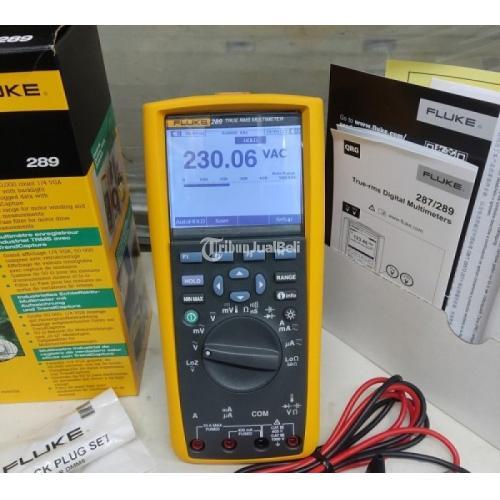

FLUKE 289 True RMS Digital Multimeter
Produk Original , Country of Origin United States ( Made in USA )
MFG Date : May 2022

Spesifikasi

Voltage DC
Akurasi 0,025%
Range & Resolusi : 50,000 mV, 500,00 mV, 5,0000 V, 50,000 V, 500,00 V, 1.000,0 V

Voltage AC
Akurasi 0,4%(true-rms)
Range dan Resolusi : 50,000 mV, 500,00 mV, 5,0000 V, 50,000 V, 500,00 V, 1.000,0 V

Arus DC
Akurasi 0,06%
Rentang dan Resolusi 500,00 µA, 5.000,0 µA, 50,000 mA, 400,00 mA, 5,0000 A, 10,000 A

Arus AC
Akurasi 0,61%(true-rms)
Rentang dan Resolusi 500,00 µA, 5.000,0 µA, 50,000 mA, 400,00 mA, 5,0000 A, 10,000 A

Suhu (tidak termasuk probe)
Akurasi 1,0%
Rentang dan Resolusi -200,0 °C s/d 1.350,0 °C (-328,0 °F s/d 2.462,0 °F)

Resistance
Akurasi 0,05%
Range & Resolusi 50,000 Ω, 500,00 Ω, 5,0000 kΩ, 50,000 kΩ, 500,00 kΩ, 5,0000 MΩ, 50,00 MΩ, 500,0 MΩ

Capacitance
Akurasi 1,0%
Range & Resolusi 1,000 nF, 10,00 nF, 100,0 nF, 1,000 µF, 10,00 µF, 100,0 µF, 1.000 µF, 10,00 mF, 100,00 mF Ω

Frekuensi
Akurasi 0,005%
Range & Resolusi 99,999 Hz, 999,99 Hz, 9,9999 kHz, 99,999 kHz, 999,99 kHz

General Specifications
Maximum voltage between any terminal and earth ground 1000 V
Temperature Operating -20 to 55°C
Electromagnetic compatibility EMC EN61326–1
Vibration Random vibration per MIL-PRF-28800F Class 2
Shock 1 meter drop per IEC/EN 61010–1 3rd Edition
Size (H x W x L) 22.2 x 10.2 x 6 cm (8.75 x 4.03 x 2.38 in)
Multiple on screen displays Yes
True-RMS AC bandwidth 100 kHz
dBV/dBm Yes
DC mV resolution 1 μV
Megohm range Up to 500 MΩ
Conductance 50.00 nS
Continuity beeper Yes
Battery/fuse access Yes/Yes
Elapse time clock Yes
Time of day clock Yes
Min-max-avg Yes
Duty cycle Yes
Pulse width Yes
Isolated optical interface Yes
Auto/touch hold Yes
Reading memory Yes

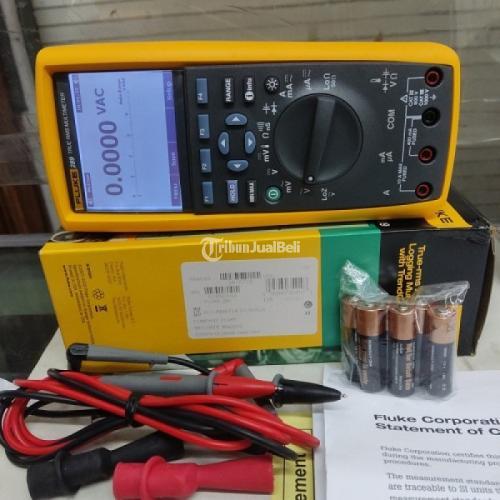

Termasuk accessories :
* Fluke Corporation Statement of Calibration Practices
* Digital Multimeter safety Innformation
* Batere AA (1,5 V ) 6 pcs
* Fluke TL-71 Test Lead
* Alligator Clipcs AC-175
