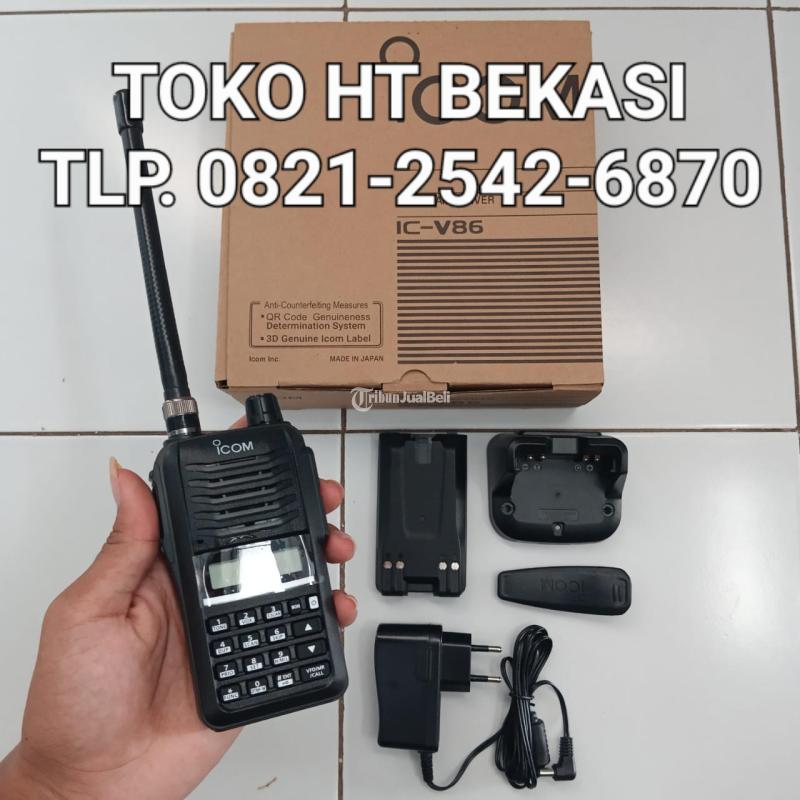

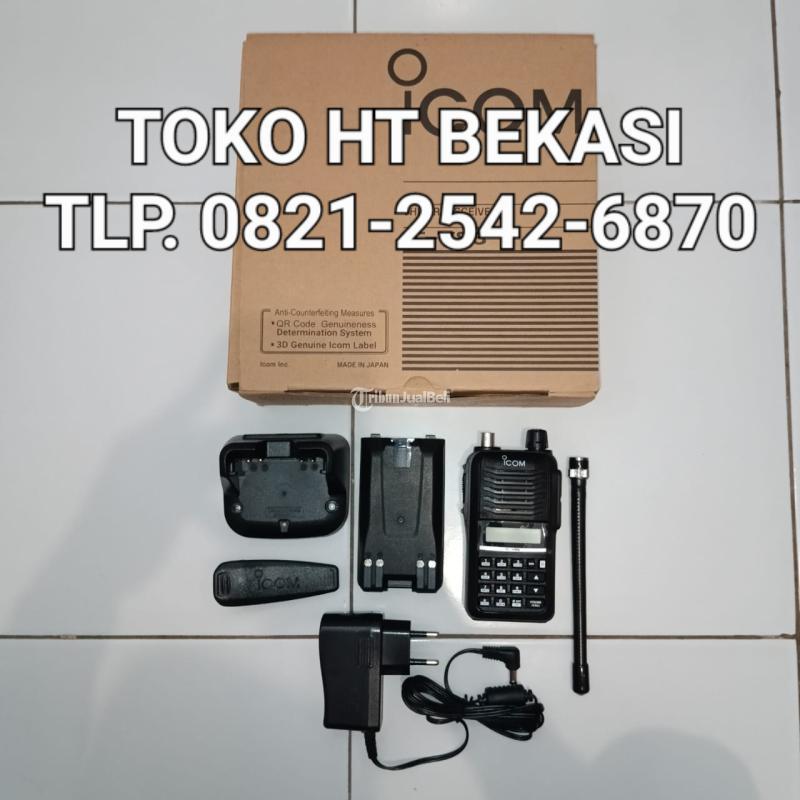

Jual HT ICOM IC-V86 di Bekasi

TOKO HT BEKASI
TLP. 0821-2542-6870

Spesipikasi :
Frequency range : (TX/RX guaranteed range) 136–174 MHz
(EX Hi power TX : 144–160 MHz)
Type of emissions : F2D, F3E (FM, FM-N)
Number of channels : 200 channels
Antenna impedance : 50Ω
Power supply requirement : 7.5 V DC
Operating temperature range : −20°C to +60°C ; −4°F to +140°F
Frequency stability : ±2.5ppm (−20°C to +60°C ; −4°F to +140°F)
Current drain (approx.)
Tx (EX Hi/Hi/Mid/Low) 1.6/1.4/1.0/0.5 A typical
Rx (Max. audio) 450 mA typ. (INT SP), 200 mA typ. (EXT SP)
Dimensions (W×H×D) (Projections not included)
58.6 × 112 × 30.5 mm, 2.3 × 4.4 × 1.2 in (with BP-298)
Weight (Approximate) 300 g, 10.6 oz (with BP-298, FA-B57V)
Transmitter
Output power (at 7.5V) 7.0/5.5/2.5/0.5 W (EX Hi/Hi/Mid/Low)
Max. frequency deviation ±5.0kHz/±2.5kHz (Wide/Narrow)
Spurious emissions
–80 dB typical
Ext. microphone connector
3-conductor 3.5(d)mm (1/8″)/2.2kΩ
