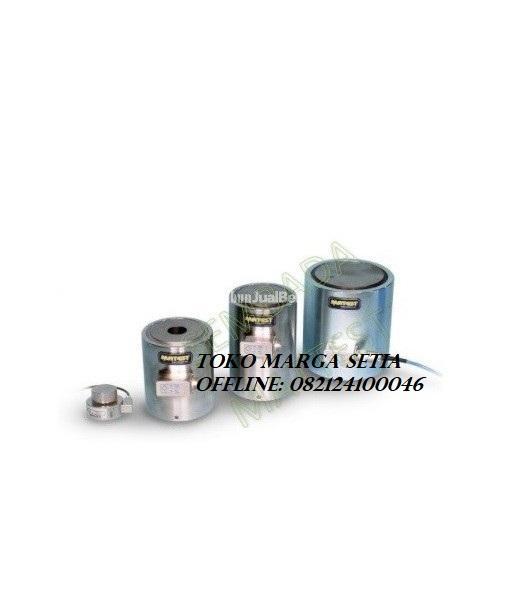

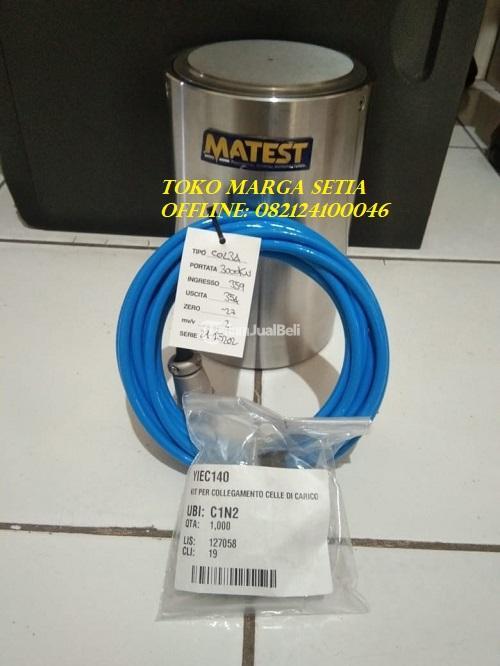

C140-07, STANDARD LOAD CELL 2000 kN, OR: PARTS/ACCESSORIES, MATEST

STANDARD: EN 10002-3 CLASS 2 ASTM E74 CLASS A

Description::

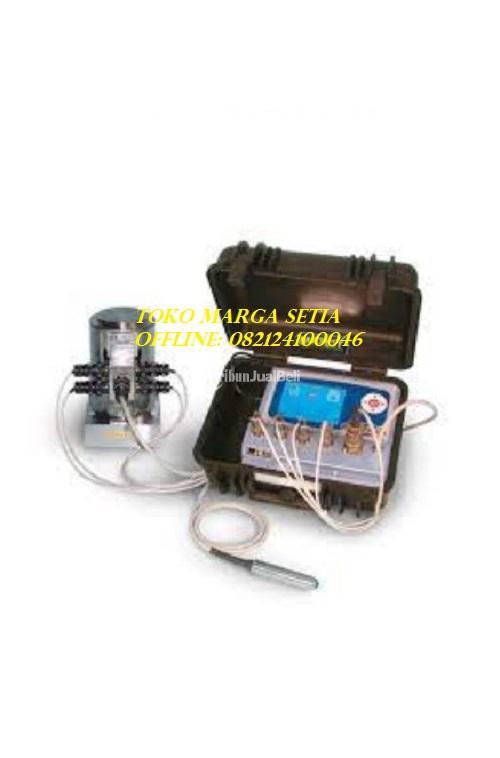

To be used with C138 Digital Indicator for Calibration of Testing Machines.
Capacity 2000 kN
This Load Cells are suitable for the calibration of Compression Testing Machine.
It is consist of a high quality steel block named sensitive element, where some strains have been fitted the whole is housed in a sheating . While the load is applied , strains are transmitted to an amplifer(mod.C138N) which gives a load digital reading. Further advantage is the possibility to equip different load cells on the same measuring tester and therefore to check all load capacities. Supplied c/w Matest calibration certificate.(accessory C138-05).

Dimensions dia. x height: 135x200 mm

*Warranty: 1 year
^Brand: Matest Italy
