Spesification :

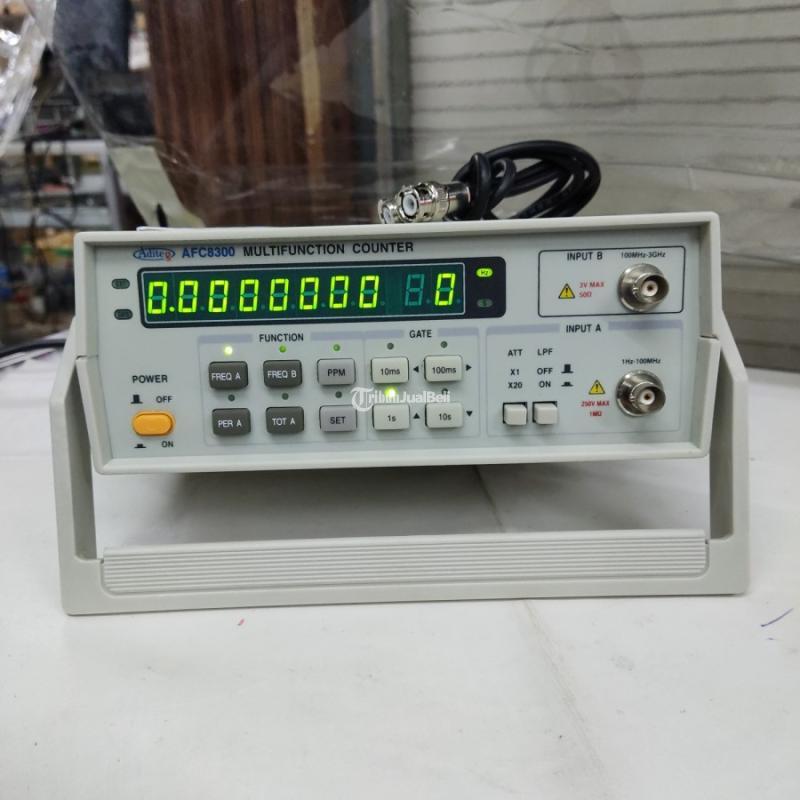

• Frequency Counter Aditeg AFC8300 ( Frequency range 1 Hz ~ 3 GHz )
• Measuring range
Freq A : 1 Hz to 100 MHz
Freq B : 100 MHz to 3 GHz
• Period range 10 ns ~ 1 s
• Totalize capability 10 8 – 1
• Sensitivity
40 mV rms ( 1 Hz ~ 10 Hz )
20 mV rms ( 10 Hz ~ 100 MHz )
30 mV rms ( 100 MHz ~ 3 Hz )
• Input impedance 1 M Ω / 40 pF ( Channel A ) 50 Ω ( Channel B )
• Input Voltage
20 mV rms ~ 250 Vp-p ( Channel A )
30 mV rms ~ 1 V rms ( Channel B )
• Couple mode AC
• Measure error ± Time base accuracy ± • Trigger error x Measured frequency ( or Period ) ± LSD
• Time base stability ± 5 x 10 -6 /d
• Power Source 110 ~ 127 VAC ± 10% / 220 VAC ~ 240 VAC ±10% , 50 Hz ±2 Hz/ 60 Hz±2 Hz
• Dimensions Unit (WxHxD) 210 x 80 x 230 mm
• Made in China

Paket Pembelian :

• 1pcs Power Cord
• 1pcs BNC to BNC Cable
• 1pcs Manul Book
• 1pcs Mini CD RoM
