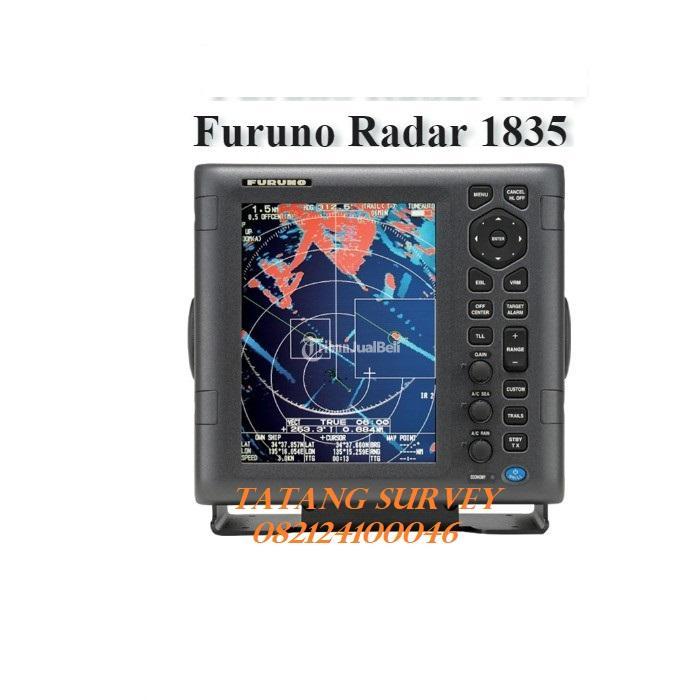

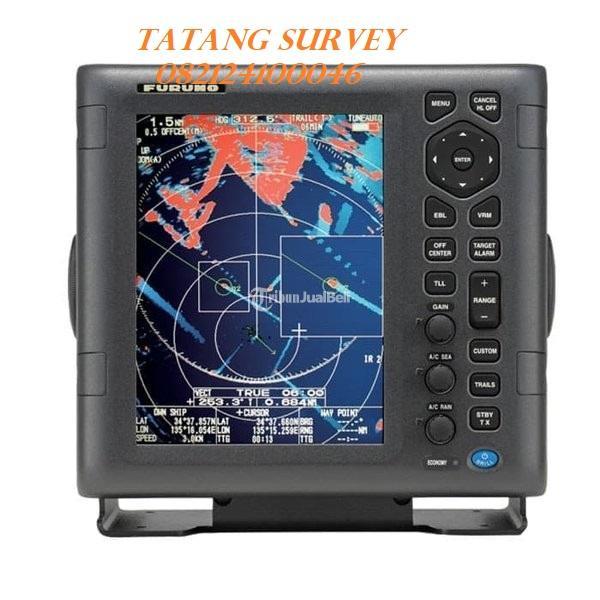

DISPLAY

Display Unit
10.4” color LCD (640 x 480, VGA)
Display Mode
Head-up, Course-up*, North-up*, True view*, True motion**
* Heading data required
** Heading and position data required
Other Mode / Functions
ARP/AIS display*1, Target tracking*2, User programmable keys, Echo trails
*1 Requires AIS transponder/receiver installed
*2 Requires heading and speed data
Weight
5.4 kg

ANTENNA

Peak Output Power
4 kW
Type
ø602 mm Radome (24”)
Frequency
9410±30 MHz (X-band)
Beam Width (Horizontal)
4.0°
Beam Width (Vertical)
20°
Range Scales
0.0625-36nm
Antenna Rotation Speed
24 rpm
Weight
8 kg

ENVIRONMENT

Temperature
Display unit : -15°C to +55°C
Antenna unit : -25°C to +55°C
Waterproofing
Display unit : IP55
Antenna unit : IP26
POWER SUPPLY

Power Supply / Consumption Current
12-24 VDC: 4.1-2.0 A
