Supplier Cable Coaxial BELDEN RG59 (9259) Serabut 75 Ohm, Kabel Belden RG59 (9100) Tunggal 75 Ohm, Kabel Belden RG58 9913, Kabel Belden 9292 75 Ohm.

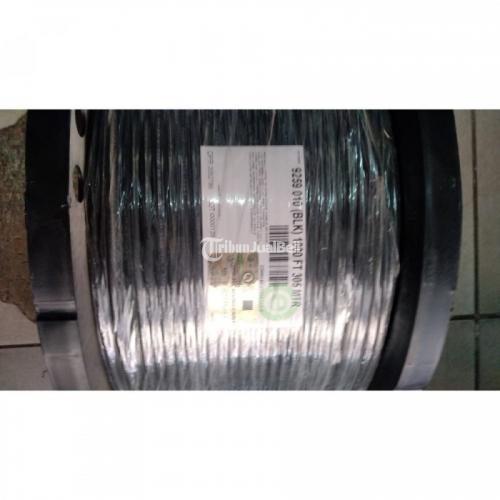

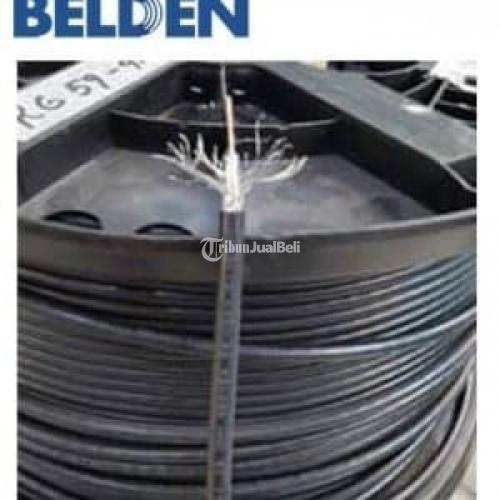

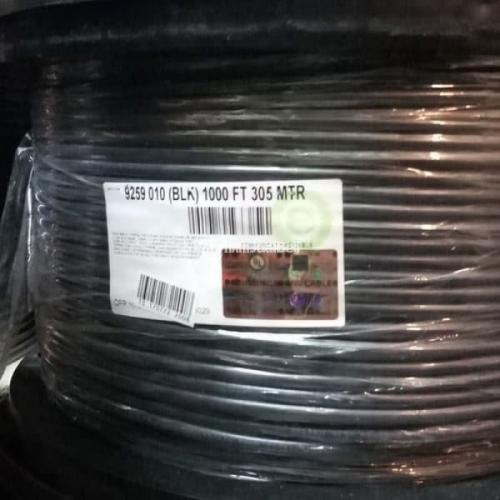

Cable Coaxial Belden RG59/U type 9259 75 Ohm 22 AWG stranded (7×30) .030″ bare copper conductor, foam polyethylene insulation, bare copper braid shield (95% coverage), PVC jacket.

Standard Analog Video Cables
The wire size of the cable is 22 AWG
The insulation material of the cable is foam polyethylene
Specifications Belden RG59 type 9259

Application : Indoor, Outdoor, CCTV, Video
Cable Type : RG59/U
Capacitance : 17.3 pF⁄ft.
Color : Black
Color, Jacket : Black
Diameter, Outer : 0.241 ” “
Impedance : 75 Ohms
Length : 500′ (152.4m)
Material, Conductor : Bare Copper
Material, Insulation : Foam Polyethylene
Material, Jacket : Polyvinylchloride
Material, Shield : Bare Copper
Packaging : Coil
Shielding : Braid
Standards : UL AWM, NEC/cUL CEC, EU CE
Stranding : 7×30
Voltage Rating : 30 V
Wire Size : 22 AWG
