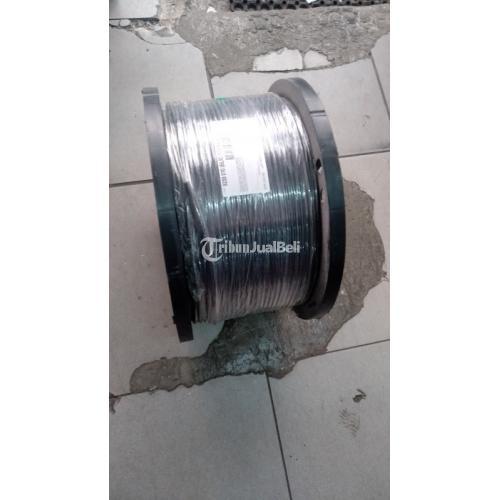

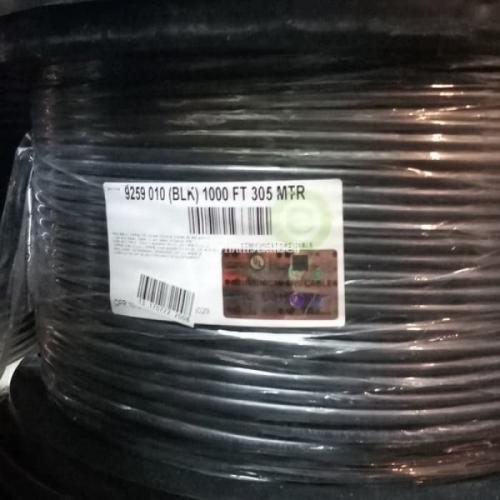

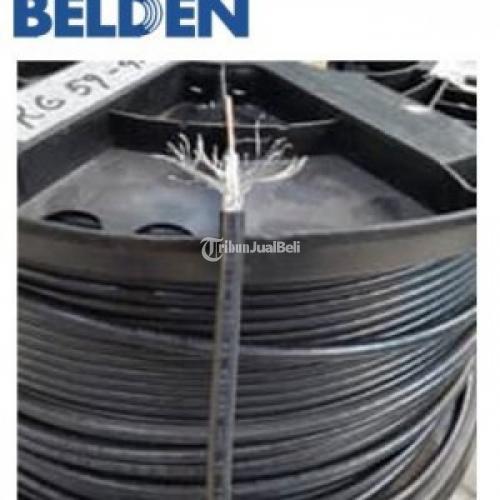

Deskripsi Kabel Coaxial Belden RG-59/U type 9259 (Serabut)Kabel Andrew Heliax FX
Supplier Cable Coaxial BELDEN RG59 (9100) Tunggal 75 Ohm, Kabel Belden RG59 (9100) Tunggal 75 Ohm, Kabel Belden RG58 9913, Kabel Belden 9292 75 Ohm.

Cable Coaxial Belden RG 59 type 9100, 20 AWG solid .032″ bare copper-covered steel conductor, gas-injected foam polyethylene insulation, Duobond® II (100% coverage) plus an aluminum braid (40% coverage), PVC jacket

Gas-injected FPE – Foam Polyethylene
Bonded Duofoil® Bonded Aluminum Foil-Polyester Tape-Aluminum Foil
Braid AL – Aluminum
Outer Jacket Material PVC – Polyvinyl Chloride
Operating Temperature Range: -40°C To +80°C
Specifications Belden RG59 type 9100

Application : Broadband MATV
Cable Type : RG59
Capacitance : 16.2 pF⁄ft.
Color : Black
Color, Jacket : Black
Diameter, Outer : 0.237 ” “
Impedance : 75 Ohms
Length : 1000′ (305m)
Material, Conductor : Bare Copper Clad Steel
Material, Dielectric : Gas Injected Foam Polyethylene
Material, Insulation : Foam Polyethylene
Material, Jacket : Polyvinylchloride
Material, Shield : Aluminum
Packaging : Coil
Shielding : Braid
Standards : UL NEC/cUL CEC, EU CE
Stranding : Solid
Voltage Rating : 300 VAC
Wire Size : 20 AWG
