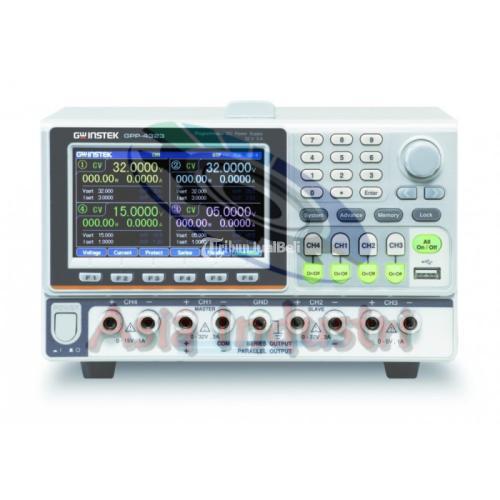

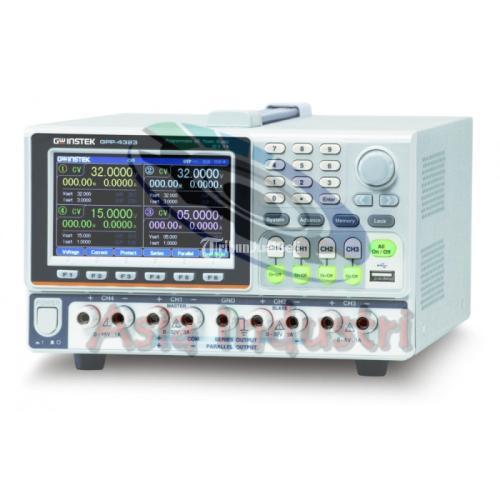

GW Instek GPP-4323 Four-Output Programmable DC Power Supply

============================================================

Features

·         4.3”TFT LCD Display

·         Supports Setting Value, Measurement Value and Output Waveform Display

·         Load Function (CC, CV, CR Mode)

·         Setting Resolution: 1mV / 0.1mA; Read Back Resolution: 0.1mV / 0.1mA

·         Low Ripple Noise: ≦350uVrms/ ≦2mArms

·         Transient Response Time: ≦50uS

·         Utilizing Hardware to Realize Over Voltage Protection / Over Current Protection / Over Temperature Protection

·         Delay Function / Output Monitoring Function / Output Recorder Function

·         Intelligent Temperature Control Fan Effectively Reduces Noise

·         Sequential Output Function and Built-in 8 Template Waveforms

·         The Output Recorder Function Records The Output Voltage & Current Parameters with A Minimum Recording Interval of 1 Second.

·         Provides 10 Sets of Memory for Each Sequence/Delay/Recorder/Panel Setting Condition

·         GPP-3323 Supports A USB (Type A) Output Terminal

·         Standard: RS-232, USB, Ext I/O

============================================================

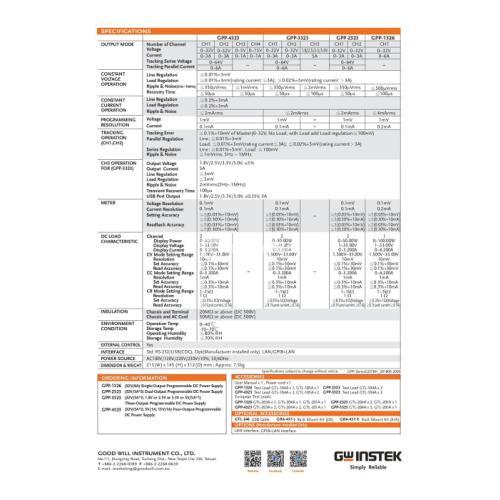

Specifications

OUTPUT MODE

-Number of Channel : CH4

-Voltage : 0 – 32V (CH1 & CH2); 0 – 5V (CH3); 0 – 15V (CH4)

-Current : 0 – 3A (CH1 & CH2); 1A (CH3); 1A (CH4)

-Tracking Series Voltage : 0 – 64V

-Tracking Parallel Current : 0 – 6A

CONSTANT VOLTAGE OPERATION

-Line Regulation : ≤0.01% + 3mV

-Load Regulation : ≤0.01% + 3mV (rating current ≤3A); ≤0.02% + 5mV (rating current >3A)

-Ripple & Noise : ≤350µVrms (5Hz – 1MHz) at CH1 & CH2; ≤1mVrms at CH3 & CH4

-Recovery Time : ≤50µS at CH1 & CH2; ≤50µs at CH3 & CH4

CONSTANT CURRENT REGULATION

-Line Regulation : ≤0.2% + 3mA

-Load Regulation : ≤0.2% + 3mA

-Ripple & Noise : ≤2mArms

PROGRAMMING RESOLUTION

-Voltage : 1mV

-Current : 0.2mA

METER

-Voltage Resolution : 0.1mV

-Current Resolution : 0.1mA

INSULATION

-Chassis and Terminal : 20MΩ or above (DC 500V)

-Chassis and AC Cord : 20MΩ or above (DC 500V)

EXTERNAL CONTROL : Yes

INTERFACE : RS-232/USB (CDC)

POWER SOURCE : AC 115V/120V/220V/230V ±10%, 50/60Hz

DIMENSIONS & WEIGHT : 213(W) x 145(H) x 312(D) mm; Approx. 7.5kg

ACCESSORIES : User manual x 1, Power cord x 1, Test Lead GTL-104A x 2, GTL-105A x 2

===========================================================
