Leica DISTO™ D510

Best outdoor functionality and apps

NEW:The new Leica DISTO™ D510 Laser Distance Meter stands for easy and effortless outdoor distance measurement. The unique combination of digital Pointfinder and 360° tilt sensor allows measurements which are not possible with conventional distance meters. In addition, with Bluetooth® Smart and attractive free apps, you are prepared for the future.

Description

Pointfinder with 4x zoom
IP65 water jet protection and dust-tight
360° tilt sensor
Smart Horizontal Mode™
Height tracking
Bluetooth® Smart
Free App – Leica DISTO™ sketch

Simple and precise targeting – Pointfinder with 4x zoom

With the Pointfinder, the Leica DISTO™ D510 Laser Distance Meter takes measurements with perfect accuracy and in unfavorable light conditions. This is a decisive advantage when working outside in sunny weather. Even if the red laser point is no longer visible to the naked eye, the target can be seen exactly in the crosshairs on the display.

Unlimited number of measuring options – 360° tilt sensor

The Leica DISTO™ D510 Distance Meter is equipped with a 360° tilt sensor. This means that it is not only possible to measure angles, but horizontal distances too! Combined with the Pointfinder, amazing indirect measurement options are provided. Hence, measurements are possible where no reflective target point is available e.g. when determining the height of a tree or when measuring the height of a reflecting glass facade. These could not be measured with a conventional laser distance meter.

Efficient height profile measurement

Using this function, the Leica DISTO™ D510 Laser Measurer displays distances and height differences to an established reference point. This makes it easy to quickly make profile measurements, without having to use more expensive measuring methods. Also, this function can be used to check whether cross beams are straight, the levelness of existing floors, among other applications.

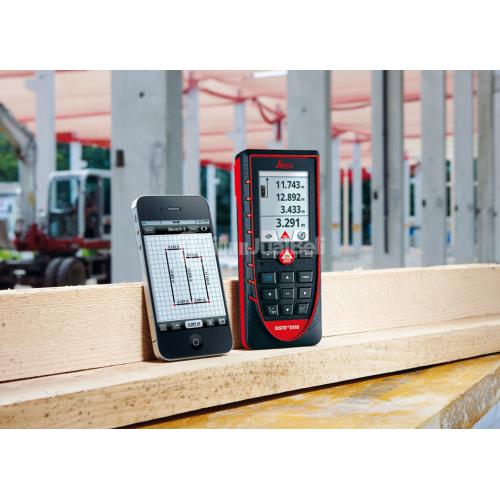

Quick sketching – Bluetooth® Smart with app

The Leica DISTO™ D510 Laser Measuring Tape is capable of more than just measuring. Measurement data can be conveniently and accurately transferred using the integrated Bluetooth® Smart Technology. The free app Leica DISTO™ sketch supports the creation of ground plans or tables on iPhone or iPad. Dimensions can even be entered onto photographs with no effort whatsoever.

Modern ergonomics

Providing the simplest possible operation of complex measuring functions is a must for Leica Geosystems. The Leica DISTO™ D510 has been adapted to the user interface of modern cell phones. Furthermore your favourite functions can be assigned to a pair of selection keys, for quick access with a single button press. And the integrated, easy-to-understand help function does not leave you in the lurch on site.

Tough and easy to clean – IP65

The housing and keypad are specially sealed against water and dust. Cleaning under running water is also no problem. Furthermore the laser distance meter can be used in all weather conditions, being dust-proof and water jet protected.

ISO Standard 16331-1 – The standard for laser distance meters

The range and accuracy of laser distance meters depend on light conditions and reflectivity of the measuring target. For Leica Geosystems it is important that the instruments not only perform under perfect laboratory conditions, but above all under the kind of everyday working conditions encountered on construction sites. This is why, working together with external experts, the company have developed a standard by which laser distance meters can be tested and compared with each other.

Technical specifications:

Typical measuring accuracy :± 1 mm

Range :up to 200 m

Measuring units :m, ft, in, yd

Power Range Technology™ : •

Distance in m :10, 50, 100 m

Ø of the laser dot in mm :6, 30, 60 mm

Tilt sensor measuring range :360°

Pointfinder with 4x zoom : •

Memory :30 displays

Free App : •

Data interface* :Bluetooth® Smart

Measurements per set of batteries :up to 5000**

Multifunctional end-piece :automatic recognition

Batteries :type AAA 2 × 1,5 V

Tripod thread : •

Protection class :IP65 – water jet protection and dust-tight

Dimensions :143 × 58 × 29 mm

Weight with batteries :198 g

*) System requirements and other details can be found at www.disto.com

**) Reduced in Bluetooth® mode.

Functions:

Minimum/maximum measurements : •

Area/volume measurement : •

Triangle/room angle function : •

Painter function : •

Trapezium measurements : •

Pythagoras functions :2 points and 3 points

Inclination tracking : •

Smart Horizontal Mode™ : •

Sloped object measurement : •

Height tracking : •

Height profile measurements : •

Stake-out function :a/b

Subtraction/addition : •

Leica Disto D510 Delivery Package:

Leica DISTO™ D510 laser distance meter
Holster
Hand loop
Batteries
