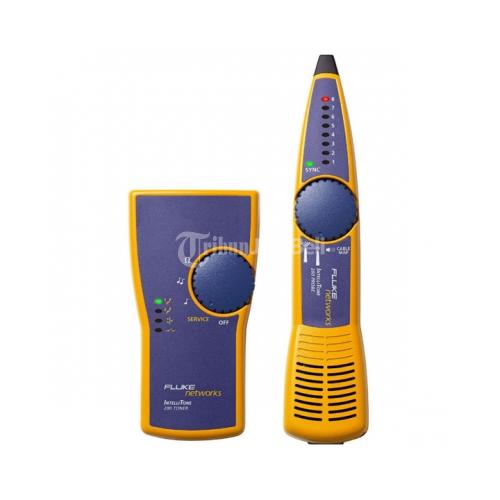

Fluke Networks IntelliTone Pro 200 Toner and Probe Kit



Overview Product

Get advanced SuperVision for locating cable hidden in floors, ceilings, walls and in bundles

Get advanced SuperVision for locating cables more effectively at patch panels, switches, termination blocks, or hidden within bundles. Our IntelliTone Pro Toner and Probe Kits find the cables others can't.

The IntelliTone™ Pro Toner and Probe Series from Fluke Networks is the first toner and probe to offer digital and analog signaling all in one tool. That means it’s equipped with the most powerful cable location technologies for any work environment. Use digital mode to trace and locate data cabling safely and effectively on active networks. Use analog mode to isolate individual wire pairs, and trace voice, audio, and video cabling.

The IntelliTone™ Pro Toner and Probe Series from Fluke Networks gives you superior vision for locating cables hidden in floors, ceilings, walls, and in bundles. Its breakthrough digital technology makes it the first tool to tone and trace safely and effectively on active networks.



Finds the cables the others can’t
IntelliTone digital signal processing rejects noise and false signals
SmartTone analog signal precisely isolates individual wire pairs
Tones safely and clearly on active networks
Diagnoses essential cable information with polarity, continuity, and talk battery
Identifies and diagnoses POTS with Line 1 service and polarity
Identifies and diagnoses 10/100/1GB Ethernet link connectivity with NIC/hub indication
Identifies and diagnoses POTS with Line 2 POTS service and polarity
Verifies twisted-pair installation with CableMap capability which identifies common cable miswire



Includes IntelliTone Pro 200 Toner and 200 Probe, coax F connector adapter, two RJ11 and two RJ45 patch cables,test leads with alligator clips, lanyards, owners CD and quick start guide, two 9 volt batteries.



Specification

Battery

Included Qty: 2
Required Qty: 2
Run Time (Up To): 20 hour(s)
Technology: Alkaline
Voltage Provided: 9 V

Environmental Parameters

Max Operating Temperature: 104 °F
Max Storage Temperature: 140 °F
Min Operating Temperature: 32 °F
Min Storage Temperature: -4 °F

Header

Brand: Fluke
Manufacturer: Fluke Networks
Model: 200 Kit
Packaged Quantity: 1
Product Line: Fluke IntelliTone Pro

Dimensions & Weight

Depth: 1.3 in
Height: 5.5 in
Width: 3 (in)

Cables

Quantity: 2
Type: RJ-45 to alligator clips cable
Type: RJ-45 to RJ-45 patch cable
Type: RJ-11 cable

Network Tester

Compliant Standards: EN 61010-1 1st Edition Amendments 1, 2 , EN 61326-1
Connectors: Banana x 2 , RJ-45
Device Type: Network tester kit
Features: SmartTone
Included Accessories: 2 x lanyards
Kit Content: Digital toner , Probe
Tests, Tools and Measurements:Cable termination , Ethernet link diagnostic , Toning
