Dijual - Kondisi Baru

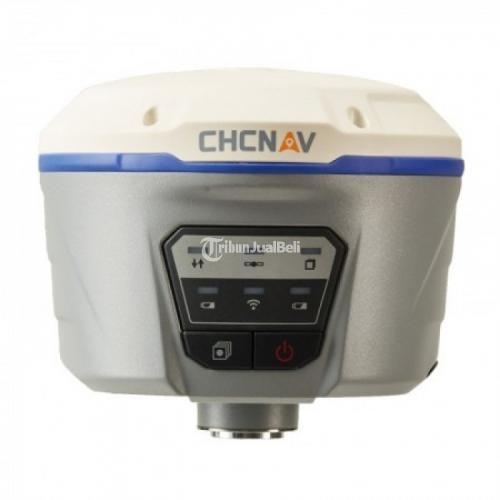

CHCNAV | CHC Navigation i50 GNSS - Tangerang Selatan

Rp. 115.000.000

Tangerang Selatan,Banten - Selasa, 21 April 2020 - 6x dilihat
Share Facebook   Share Twitter   Share Whatsapp
CHCNAV | CHC Navigation i50 GNSS - Tangerang SelatanCHCNAV | CHC Navigation i50 GNSS - Tangerang SelatanCHCNAV | CHC Navigation i50 GNSS - Tangerang Selatan zoom-in
CHCNAV | CHC Navigation i50 GNSS - Tangerang Selatan
CHCNAV | CHC Navigation i50 GNSS - Tangerang Selatan
CHCNAV | CHC Navigation i50 GNSS - Tangerang Selatan

INFORMASI PENJUAL

admin03
Tangerang Selatan
Tampilkan nomor telepon

Deskripsi Produk:


The CHCNAV i50 GNSS receiver brings speed and accuracy in one easy-to-use GNSS solution to complete your surveying and construction projects efficiently. Combined with CHCNAV LandStar 7 field software and HCE320 Android controller, the i50 is the perfect surveying solution for topographic and construction positioning tasks.


The CHCNAV i50 GNSS receiver brings speed and accuracy in one easy-to-use GNSS solution to complete your surveying and construction projects efficiently. Combined with CHCNAV LandStar 7 field software and HCE320 Android controller, the i50 is the perfect surveying solution for topographic and construction positioning tasks.


Key Features


● 634 Channels Full GNSS
● Extended Connectivity
● Flexible Work Modes
● Rugged and Compact
● Extra Power





SPESIFICATION


GENERAL


Type Land
Year of initial introduction 2018
Height [m] 0.106
Depth [m] 0.14
Width [m] 0.13
Total weight [kg] 1.29

POWER

Operating power: min. [V] 7.4
Operating power: max. [V] 36
Typical consumption [W] 4.2
Internal power supply 7.4
External power supply 9 - 36
Operating time with internal power supply [hr] 12
Certifications CE

ENVIRONMENT

Operating temperature: min. [°C] -40
Operating temperature: max. [°C] 65
Humidity resistance 95%
Water sand and dust proof IP67
Shock and vibration proof 2-meter pole drop



PERFORMANCE

No. channels 432
Tracked satellite signals GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS
SBAS differential signals L1
Type of measurements RTK, PPK, Static
Reacqisition time [s] <1s
RTK Network Compatibility >99.9%
