Dijual - Kondisi Baru

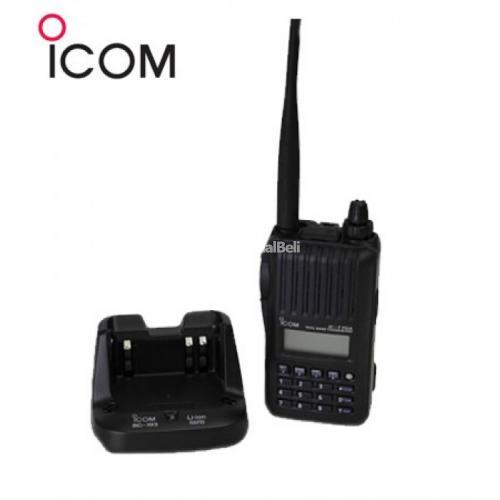

Handy Talky ICOM IC T70A DUAL BAND - Jakarta Selatan

Rp. 3.500.000

Jakarta Selatan,DKI Jakarta - Jumat, 11 Oktober 2019 - 52x dilihat

Handy Talky ICOM IC T70A DUAL BAND - Jakarta SelatanHandy Talky ICOM IC T70A DUAL BAND - Jakarta SelatanHandy Talky ICOM IC T70A DUAL BAND - Jakarta Selatan
Handy Talky ICOM IC T70A DUAL BAND - Jakarta Selatan
Handy Talky ICOM IC T70A DUAL BAND - Jakarta Selatan
Handy Talky ICOM IC T70A DUAL BAND - Jakarta Selatan

INFORMASI PENJUAL

sudar
Jakarta Selatan
Tampilkan nomor telepon

Deskripsi Produk:


Specifications
General
Frequency range (unit: MHz)
Tx
Rx
144-148, 420-450*1
136-174, 400-479*1
*1guaranteed 144-148 MHz, 440-450 MHz
Type of emissions F2D/F3E (FM)
Number of memory ch. 302 (incl. 50 scan edges and 2 call)
Antenna impedance 50 (SMA)
Power supply
External DC power
Battery cells 7.2V DC (with BP-264)
10-16V DC
6-10V DC
Frequency stability 2.5 ppm -20C to +60C basis of 25C
Current drain
(at 7.2V DC or 13.5V DC)
(VHF/UHF, typical)
Tx
Rx





High (UHF/VHF)
Max. audio


Stand-by
Power saved 1.7 A/2.1 A typical
Less than 450mA (internal SP, 16)
Less than 300mA (External Sp, 8)
Less than 90mA
Less than 40mA (1:8 duty)
Operating temperature range -20C to +60C
-4F to +140F
Dimensions
(projections not included)
58(W) 111(H) 30(D) mm


2932(W) 438(H) 1316(D) in


Weight 380g; 13.4oz (with BP-264 and Ant.)
Transmitter
Output power (at 7.2 V DC)
5.0W/2.5W/0.5W (high/mid/low)
Spurious emissions Less than -60 dBc (high/mid)
Less than -13dBm (low)
Max. freq. deviation 5 kHz/2.5 kHz (wide/narrow)
Ext. MIC connector 3-conductor 2.5(d) mm (110)/2.2k
Receiver
Sensitivity (at 12dB SINAD) 0.18 V (guaranteed range)
Squelch sensitivity (at threshold) 0.18 V typical
Selectivity
FM
FM narrow
More than 60dB
Less than 60dB
Spurious and Image rejection ratio More than 60dB (VHF)
Audio output power (at 10% distortion) More than 700mW (internal SP, 16
More than 400mQ (external SP, 8
Ext. SP connector 3-connector 3.5 (d) mm (18)/8
Applicable U.S. Military Specifications and IP Rating
Standard


MIL 810F
Method Proc.
Temp. Shock 503.4 I
Rain 506.4 I, III
Vibration 514.4 I
Shock 516.5 I, IV
Also meets equivalent MIL-STD-810-C, -D and -E. Other test categories are now under evaluation.


Ingress Protection Standard
Dust and Water IP54 (dust-protection and water resistant)
All stated specifications are subject to change without notice or obligation.


Supplied Accessories
Antenna, FA-S270C
Belt clip, MB-124
Battery pack, BP-265
Rapid charger, BC-193
Hand strap
