Dijual - Kondisi Baru

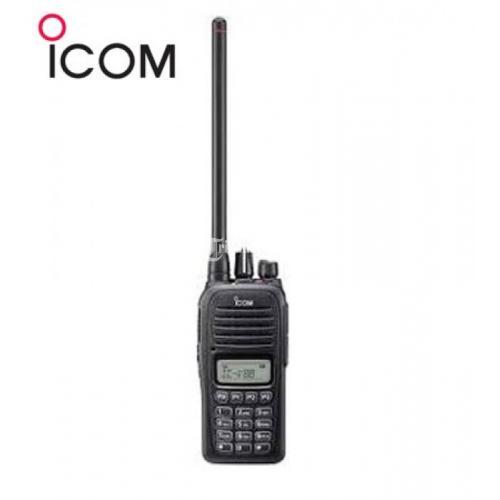

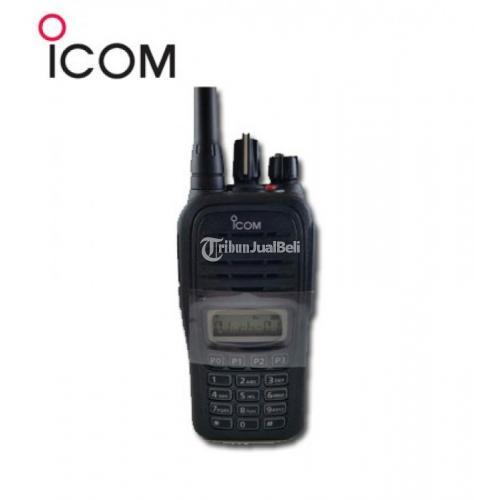

Handy Talky ICOM IC U88 - Jakarta Selatan

Rp. 1.800.000

Jakarta Selatan,DKI Jakarta - Jumat, 11 Oktober 2019 - 78x dilihat

Handy Talky ICOM IC U88 - Jakarta SelatanHandy Talky ICOM IC U88 - Jakarta SelatanHandy Talky ICOM IC U88 - Jakarta Selatan
Handy Talky ICOM IC U88 - Jakarta Selatan
Handy Talky ICOM IC U88 - Jakarta Selatan
Handy Talky ICOM IC U88 - Jakarta Selatan

INFORMASI PENJUAL

sudar
Jakarta Selatan
Tampilkan nomor telepon

Deskripsi Produk:


Spesifications of ICOM IC-U88 :


Icom custom high power handling capacity speaker


for 1500 mW powerful audio


IP67 waterproof and dust-tight protection


5.5 W/4 W (VHF/UHF) of output power


Up to 10 hours of operating time with the supplied waterproof battery


128 memory channels and eight zones


Eight character alphanumeric display


Built-in CTCSS and DTCS encoder/decoder


Eight DTMF autodial memories


MDC 1200 PTT ID and BIIS 1200 PTT ID


Inversion voice scrambler (16 code) for private conversations


Channel announcement of the operating channel number


Seven programmable buttons with Shift key function


16 scan lists and priority scan functions


Hands-free operation with the optional headset





GENERAL IC-U88


Frequency coverage 335380 MHz


Type of emissions 16K0F3E, 11K0F3E (25/12.5 kHz)


Number of channels 128 channels


Antenna impedance 50


Power supply requirement 7.5 V DC


Operating temperature range 30 C to +60 C (Radio only)


Frequency stability 2.5 ppm


Current drain (Approximate)


Tx High


Rx Maximum audio/Stand-by


1.5 A


500 mA (Internal SP) / 77 mA


1.3 A


500 mA (Internal SP) / 80 mA


Dimensions (WHD)


(Projections not included)


52.2 111.8 22.3 mm (with BP-278)


Weight (Approximate) 230 g (with BP-278)


TRANSMITTER


Output power (at 7.5 V DC) 5.5/ 2.0/ 1.0 W (Hi/L2/L1) 4.0/ 2.0/ 1.0 W (Hi/L2/L1)


Maximum frequency deviation 5.0 kHz/2.5 kHz (Wide/Narrow)


Spurious emissions 70 dB minimum


External microphone connector 3-conductor 2.5 (d)mm (1/10)/2.2 k


RECEIVER


Sensitivity 0.25 V typical (at 12 dB SINAD)


Squelch sensitivity 0.25 V typical (at threshold)


Adjacent channel selectivity 76 dB/ 53 dB typical (W/N) 73 dB/ 56 dB typical (W/N)


Intermodulation 74 dB typical 73 dB typical


Spurious response 70 dB minimum


Audio output power


Internal speaker


External speaker


1500 mW typical (8 load)


400 mW typical (8 load)


External speaker connector 3-conductor 3.5 (d) mm (18)/ 8


Measurements made in accordance with EIA/TIA-603.


All stated specifications are subject to change without notice or obligation.


Applicable U.S. Military Specifications & IP Rating


Standard MIL 810G


Method Procedure


Low Pressure 500.5 I, II


High Temperature 501.5 I, II


Low Temperature 502.5 I, II


Temperature Shock 503.5 I-C


Solar Radiation 505.5 I


Rain Blowing/Drip 506.5 I, III


Humidity 507.5 II


Salt Fog 509.5


Dust Blowing 510.5 I


Immersion 512.5 I


Vibration 514.6 I


Shock 516.6 I, IV


Also meets equivalent MIL-STD-810-C, -D, -E and -F.


Ingress Protection Standard


Dust & Water IP67 (Dust-tight and waterproof protection)
